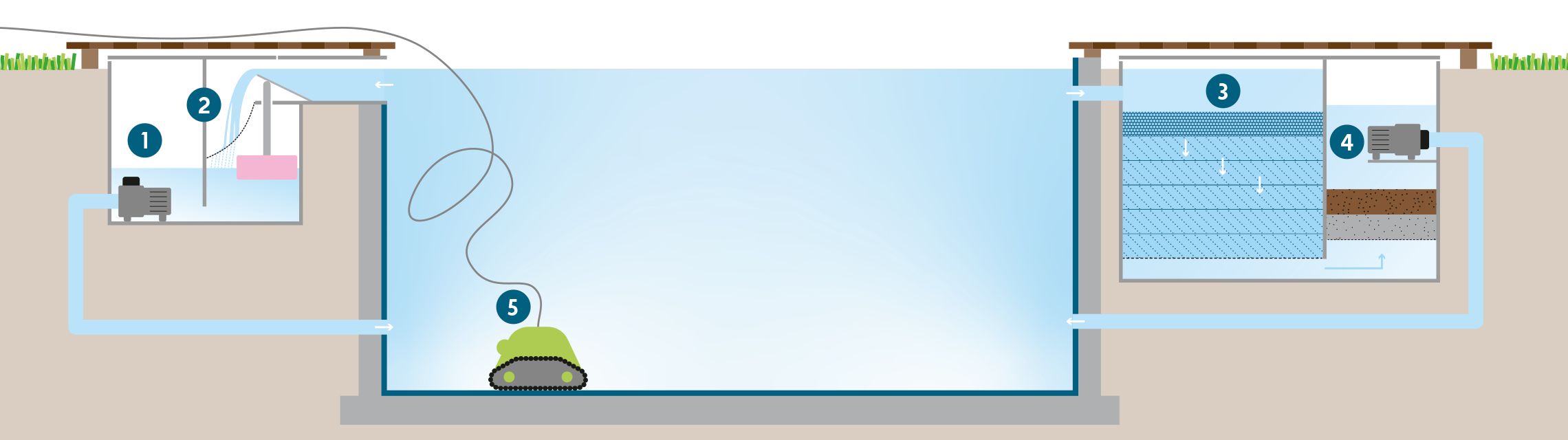

Having two separate water cycles allows an economically-efficient and energy-saving use of the pumps. During the first cycle, the surface of the water is skimmed and floating particles are removed from the water. The pump is only in operation during the day. During the second cycle, organic impurities are degraded and phosphorous is eliminated from the water. This pump runs continuously during the bathing season. Water features such as a mill stone or waterfall can be integrated in both water cycles. Biotop has always attached a great deal of importance to designing technical components that are simple and easy for the user to understand.

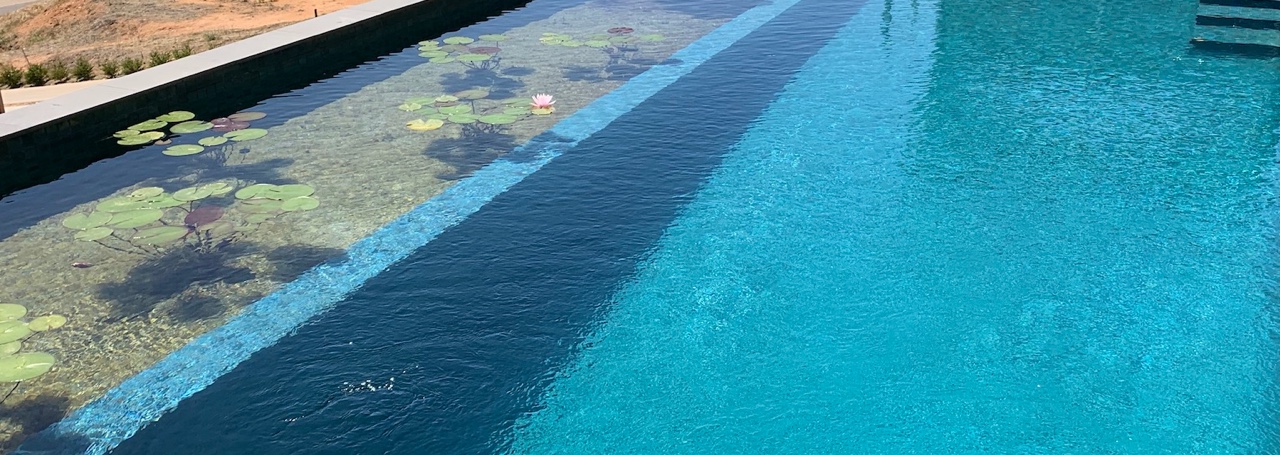

The Living Pool looks like a conventional pool but is in fact a fully functional biological pool. The Biotop Living Pool requires absolutely no chlorine or any other chemicals and offers the ultimate swimming enjoyment in crystal clear water.
Many homeowners dream of being able to swim in their own backyard, but hesitate to use chemicals in their pool – especially when children will be enjoying the pool as well. Chlorine can not only be damaging for the natural environment, but also unhealthy for people. The Living Pool turns swimming into an uplifting experience for the senses.
This uncomplicated system has many advantages. For example, the pool does not have to be emptied for the winter; there is no need to remove the water in the pipes, and the pumps remain in place. Only the filter material of the "PhosTec-Upstream" has to be replaced every few years. This is a major convenience that all swimming pool owners will no doubt appreciate.

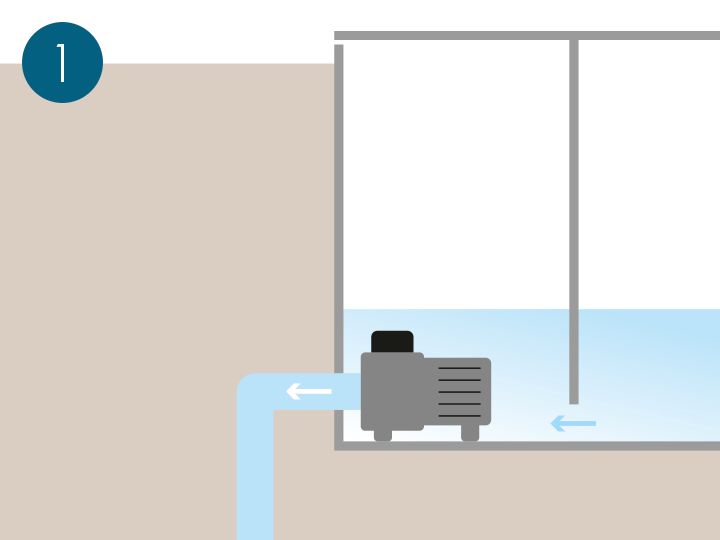

Biotop has developed a special water circulation concept for Living Pools. The pump is completely submersed in water in a chamber, allowing water to flow to it simply by the force of gravity instead of being “sucked in” by the pump. Mounted at the bottom of the chamber, the pump conveys the water back into the pool through pressure pipes.

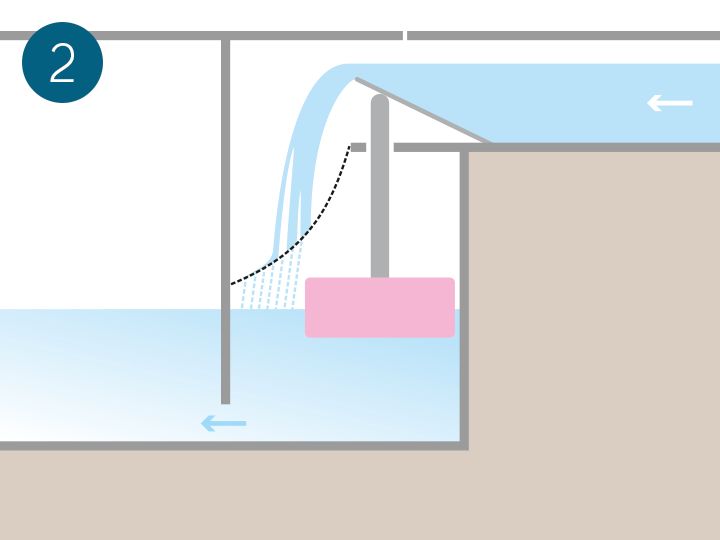

The purpose of the curved screen skimmer is to remove floating particles from the Living Pool. The water flows over a curved screen with a mesh width of only 0.3 millimetres that removes even the smallest particles. A sophisticated mechanism controls the water flow via a flexible flap so that the correct amount of water always flows over the screen. Biotop was granted a European patent for this innovation.

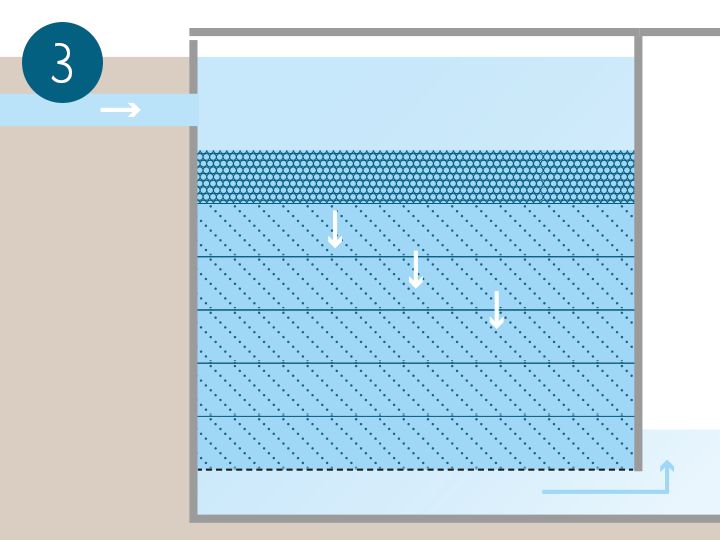

Water flows vertically through the bio compact filter from top to bottom and is biologically cleaned along the way. Organic compounds and impurities that could cause cloudy water are broken down by microorganisms. The result is crystal-clear water. To optimise the cleaning performance of the microorganisms, water flows through the biofilter permanently. The biologically cleaned water then flows back into the pool.

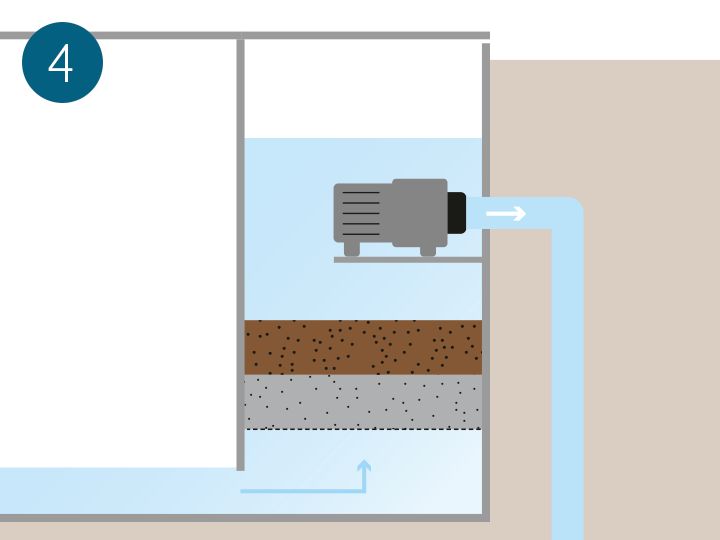

The “PhosTec Upstream” phosphate filter efficiently binds the phosphorus dissolved in the water without the use of chemicals. Phosphorus promotes the growth of algae. By binding it, the algae are literally “starved”. The pool water flows through the filter from bottom to top to minimize the risk of clogging the filter. Nutrient-poor water is then pumped back into the pool by a small pump. Biotop was granted a European patent for combining the biofilter with the PhosTec Upstream filter.

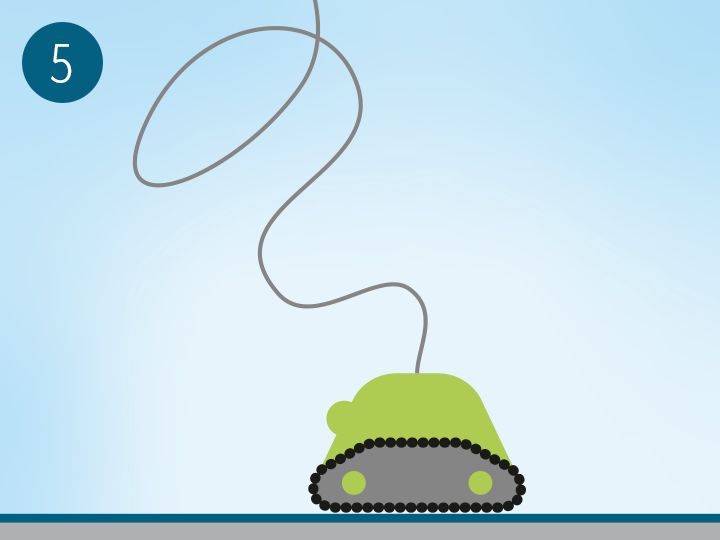

The pool robot cleans the walls and bottom of the pool automatically.
